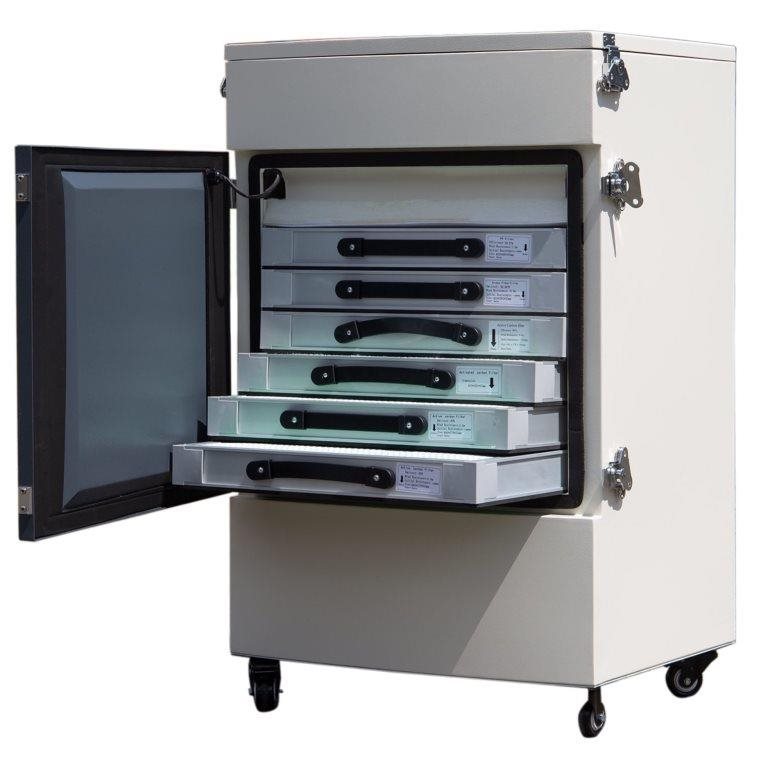

The smoke and gas filter type FlensAir-3 GF-PP-AK is made of robust, painted sheet steel. A quiet continuous turbine makes the FlensAir-3 the ideal solution in all areas where fine dust, smoke and gases must be collected and filtered. After filtration, the cleaned exhaust air can be returned to the work area or discharged to the outside. A digital control panel allows the system status to be read and adjusted at any time. A flexible four-stage filtration system, adapted to the application, eliminates smoke and gases with a separation efficiency of > 99.97% for particles < 0.3µm. A 10-stage power control minimizes energy costs and reduces noise. The pre-filters can be cleaned several times.
Technical data:
Motor: 1Ph., 220V, 50Hz,
power: 0,45 kW,
Connections: 1 x 90 mm,
Adjustable: 10 power levels,
volume flow: 700 m³/h,
Noise level: < 65 dB(A),
Dimensions: H/W/D 885x550x440 mm
Filter equipment:

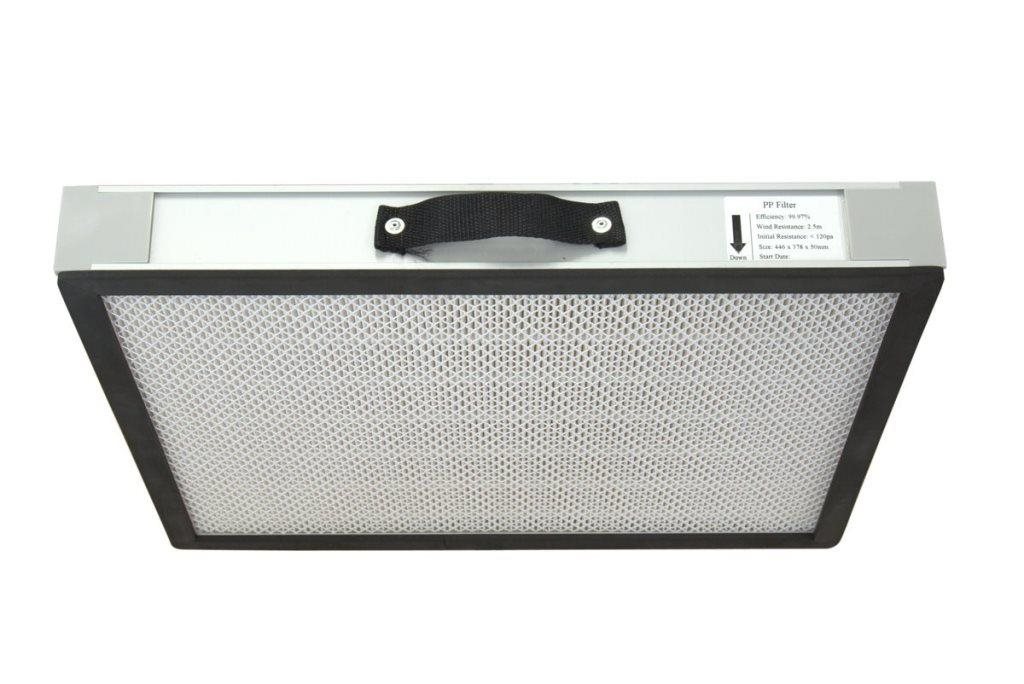

Filter stage 1: Pre-filter mat for coarse dust

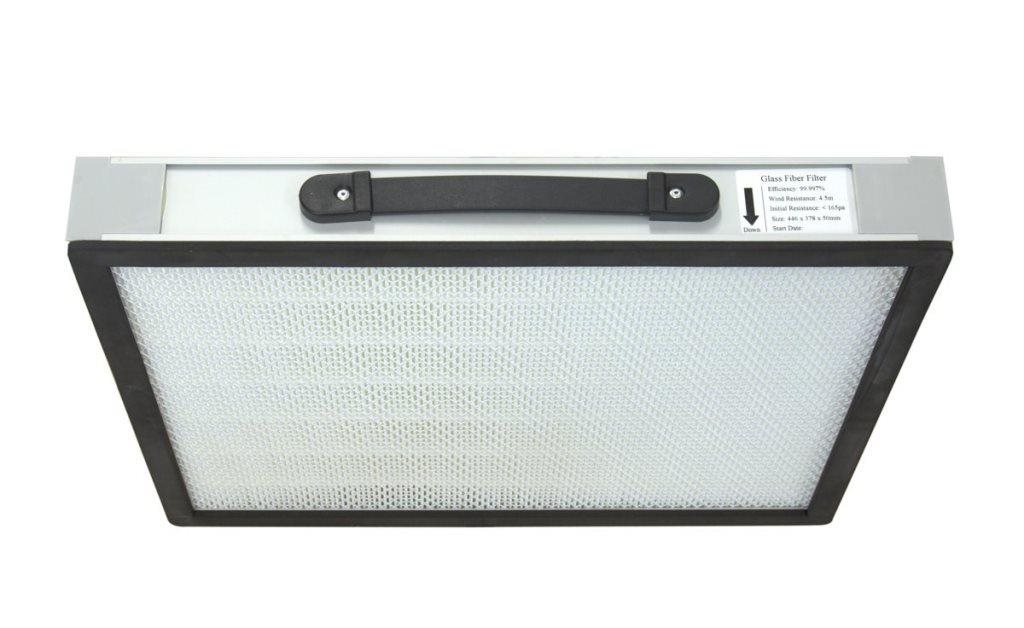

Filter stage 2: Glass fiber filter
Filter stage 3: Fine dust filter for 99,997% > 0,3µm

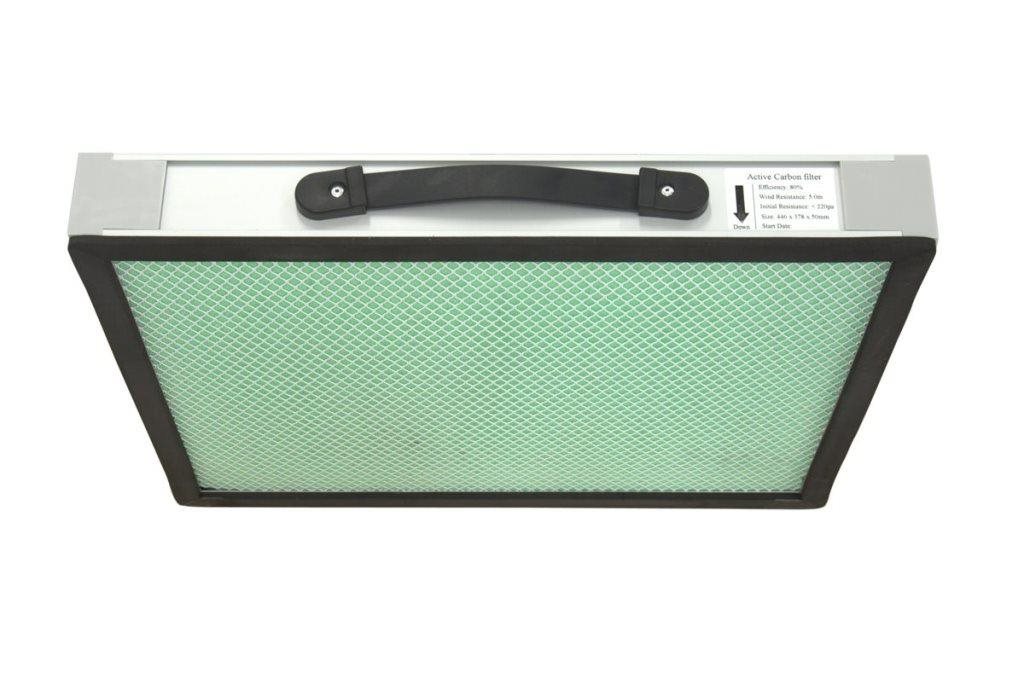

Filter stage 4-7: Activated carbon filter for 98% of gases
Suitable for emissions generated by plasma/ and corona pretreatment.
For other applications and special solutions, please contact us to ensure safe filtering and discharge.
It should be ensured by measurement that no ozone residues are blown/emitted into the room air after filtering.
