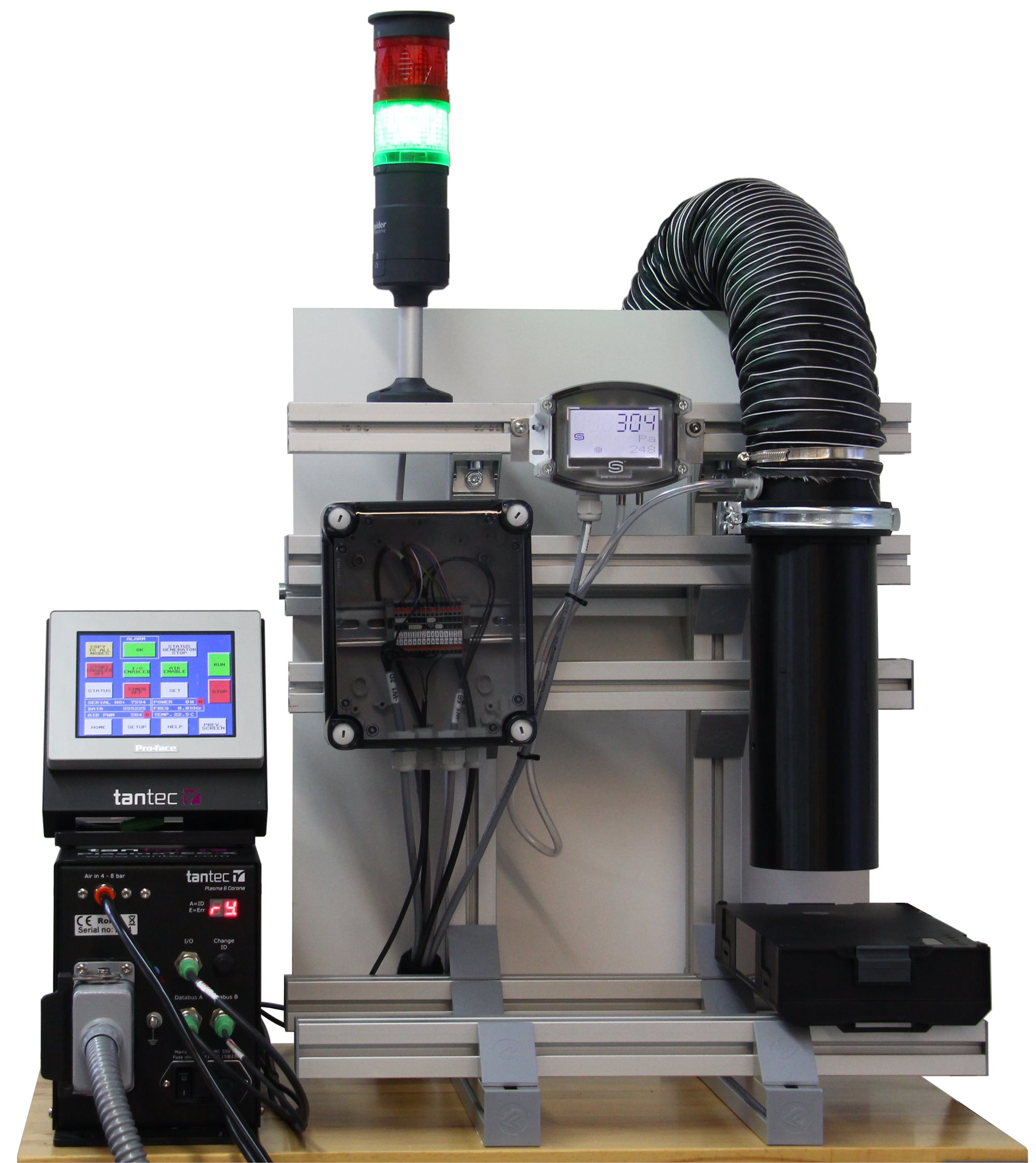

Always keep an overview of the suction power with which your extraction system extracts emissions. This enables you to intervene immediately in the event of pressure fluctuations. The pressure sensor connected to the control box continuously records the line pressure of your extraction system. If the pressure falls below the preset limit, the monitoring system passes on a signal and switches off the connected PLX if the pressure is too low.
With the optionally available light lamp, you can also see at a glance from a distance whether the suction power of your extraction system is in the right range, if not, the light lamp lights up red.

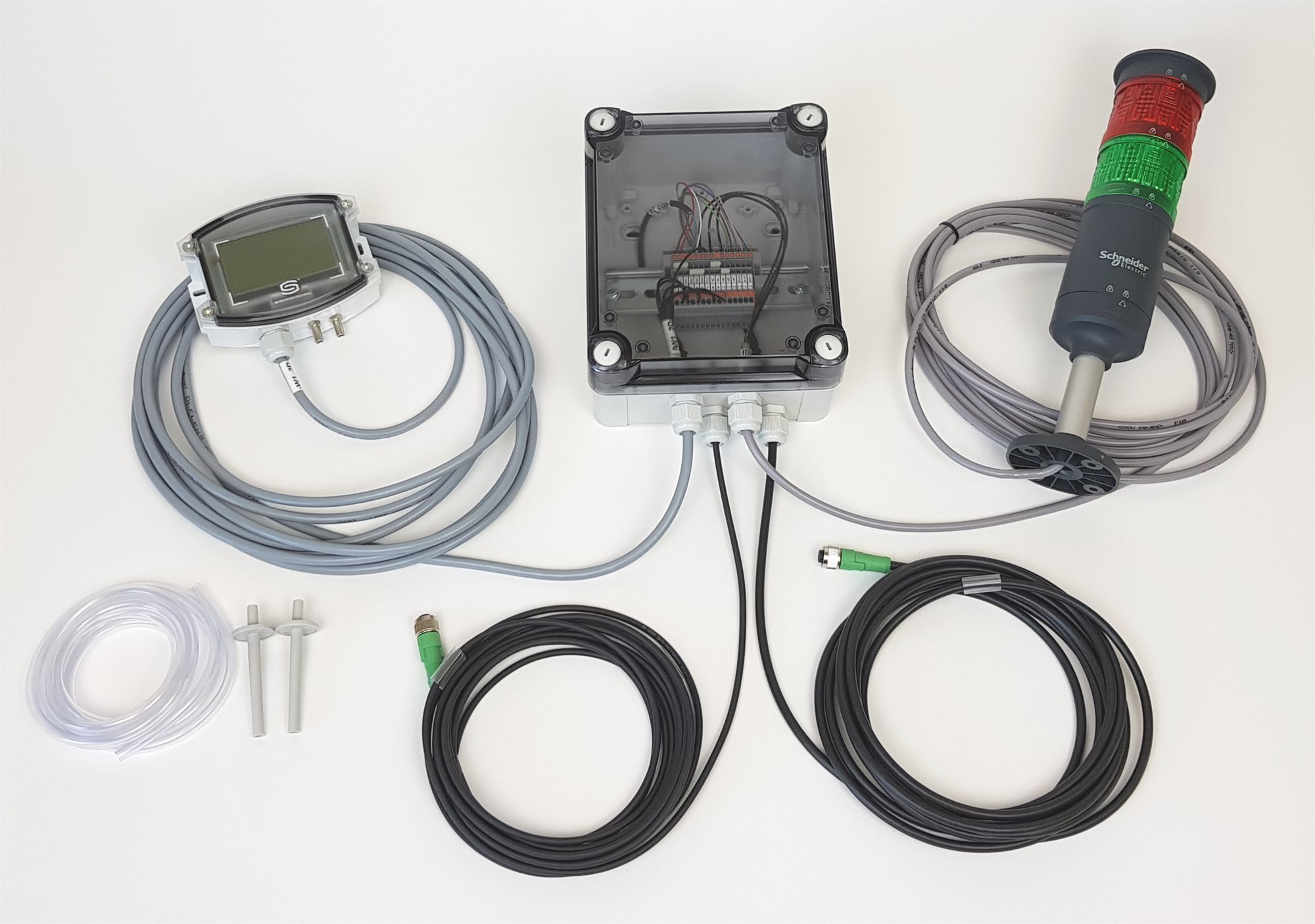

cope of delivery:
-
Control box
-

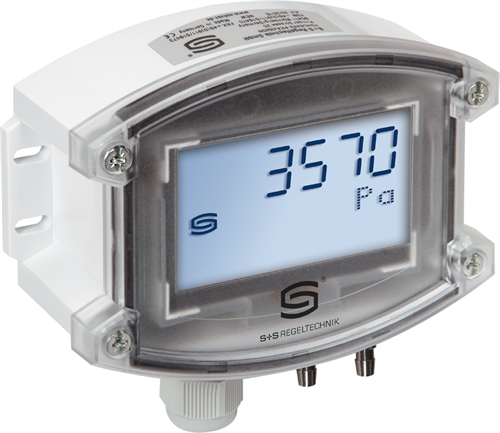

Differential pressure transmitter incl. 5m cable, connection nipple and hose
-
5m supply line for Tantec PLX (Databus B)
-
5m control line for Tantec PLX (I/O)
Option (please order separately):
-

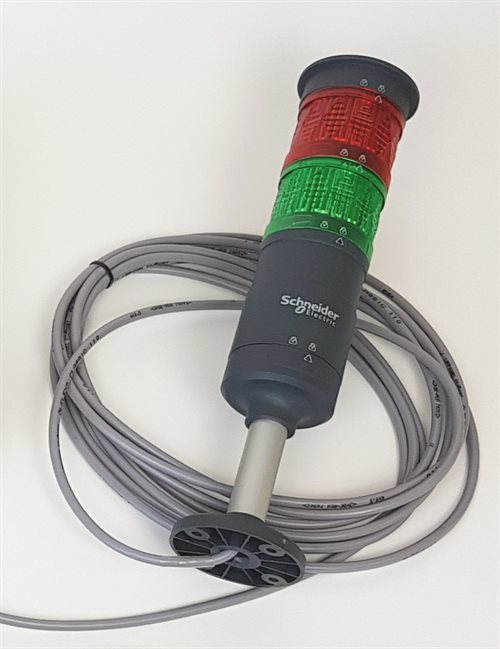

Signal lamp incl. 5m cable
-
Differential pressure transmitter for a second/upper pressure limit surveillance
